COMMON SPECIFICATION

• WHEEL SIZE
  145 / 80 R12 OR 18″ x 8.50″-10

• BRAKES
  SELF ADJUSTING DRUM

• ROBUST BODY FRAME
  WELDED ALLOY STEEL

• GROUND CLEARANCE
  150 + MM

• SUSPENSION
  LEAF SPRING + SHOCK ABSORBER

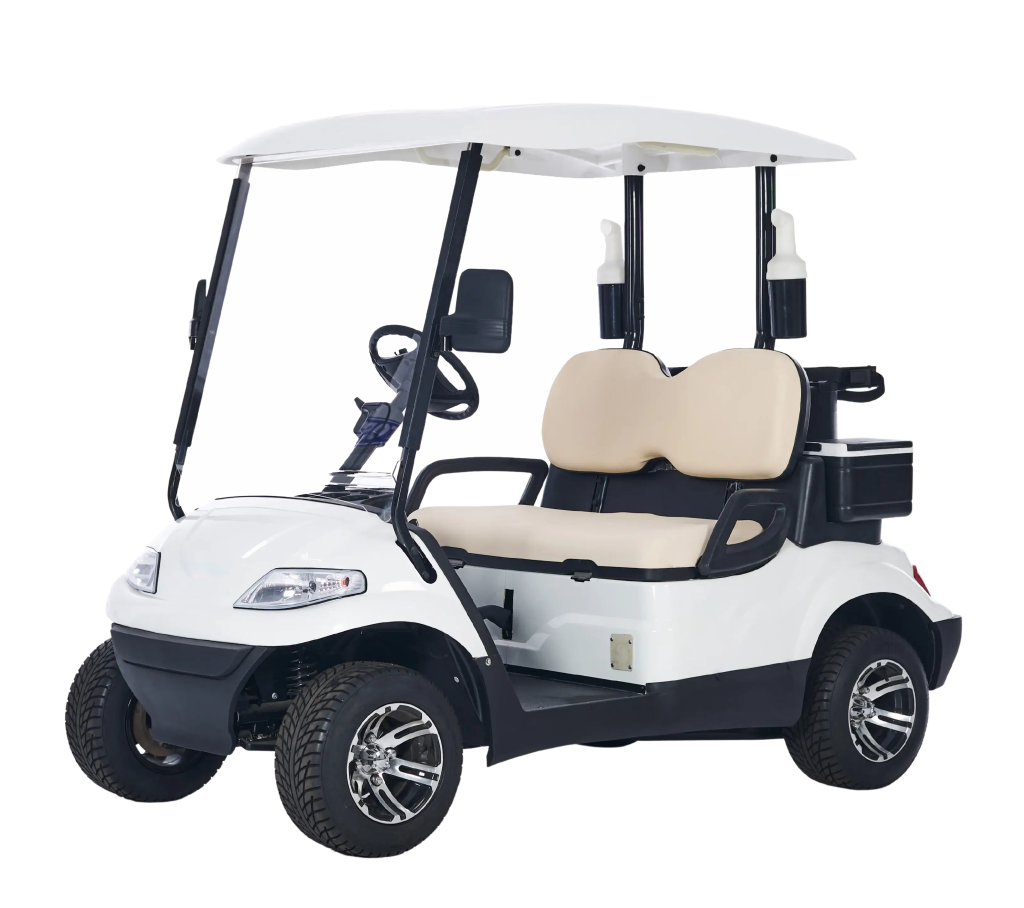

2 OR 4 SEATER

• DIMENSIONS: L 2.7 | W 1.2 | H 1.8 METRES

• DRIVE MOTOR: PMSM / DC / AC

• PEAK POWER: 2.5 KW

• MAX SPEED: 25 KMPH

• RANGE: 50–60 KM

• BATTERY:

  • LEAD ACID: 48V 135 AH

  • LITHIUM ION: 100 AH

• CHARGING TIME:

  • LEAD ACID: 10–12 HRS

  • LITHIUM ION: 5–6 HRS

• BRAKE TYPE: HYDRAULIC

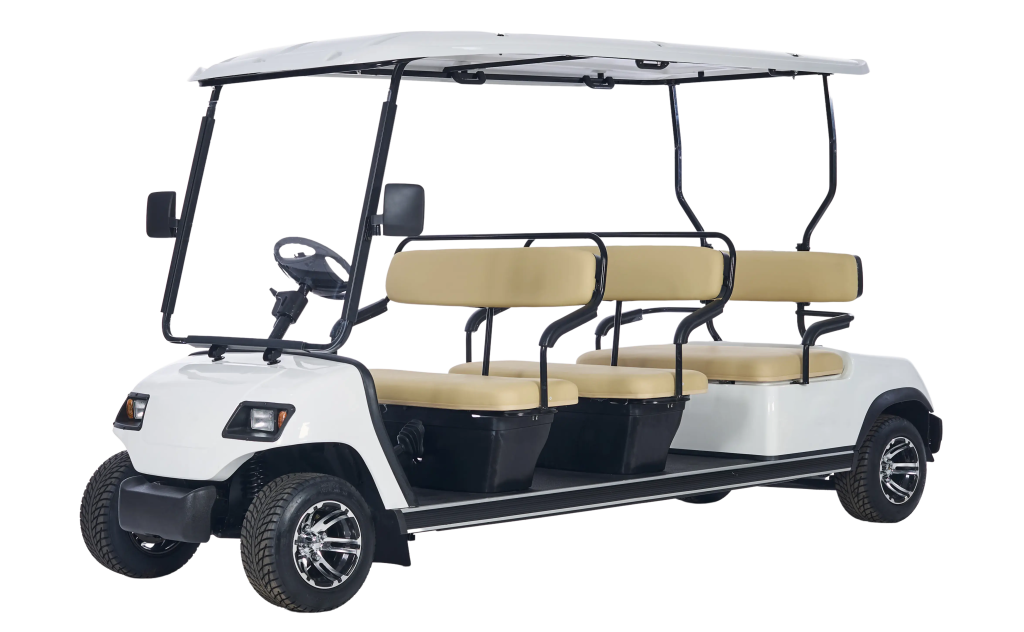

6 SEATER

• DIMENSIONS: L 3.4 | W 1.2 | H 1.8 METRES

• DRIVE MOTOR: PMSM / DC / AC

• PEAK POWER: 3 KW

• MAX SPEED: 25 KMPH

• RANGE: 50–60 KM

• BATTERY:

  • LEAD ACID: 48V 135 AH

  • LITHIUM ION: 100 AH

• CHARGING TIME:

  • LEAD ACID: 10–12 HRS

  • LITHIUM ION: 5–6 HRS

• BRAKE TYPE: HYDRAULIC

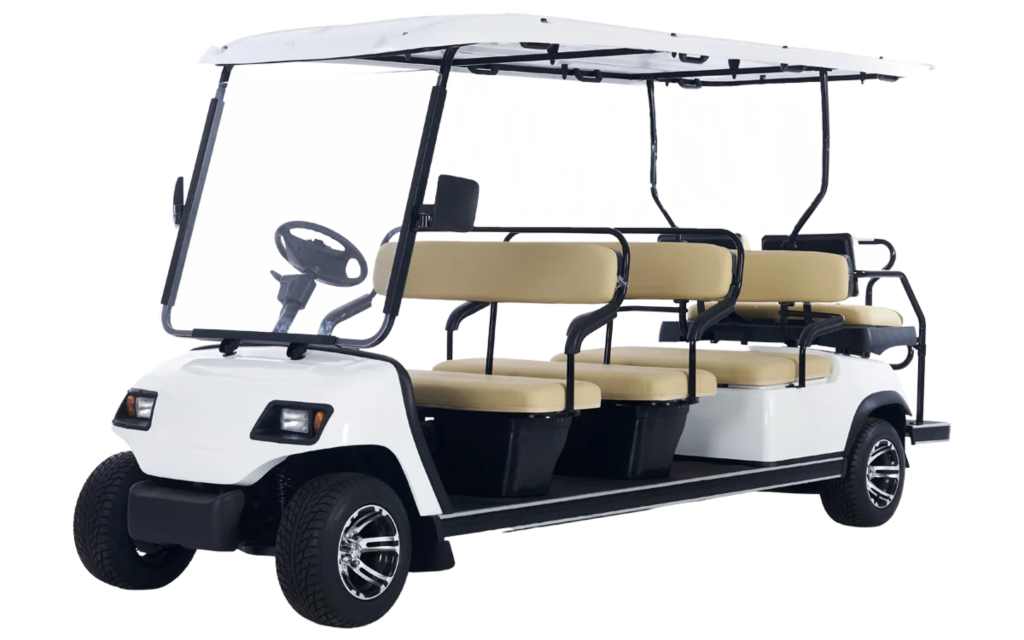

8 SEATER

• DIMENSIONS: L 4.2 | W 1.2 | H 1.8 METRES

• DRIVE MOTOR: PMSM / DC / AC

• PEAK POWER: 4 KW

• MAX SPEED: 25 KMPH

• RANGE: 50–60 KM

• BATTERY:

  • LEAD ACID: 60V 135 AH

  • LITHIUM ION: 100 AH

• CHARGING TIME:

  • LEAD ACID: 10–12 HRS

  • LITHIUM ION: 5–6 HRS

• BRAKE TYPE: HYDRAULIC

Additional Information

• WARRANTY COVERAGE

  • VEHICLE: 1 YEAR

  • LEAD ACID BATTERY: 1 YEAR

  • LITHIUM ION BATTERY: 3 YEARS

• EXCELLENT AFTER SALES SUPPORT

• CUSTOMISABLE VEHICLES
